DH3512.311 Battery Impact Driver

A robust all-metal gearbox ensures exceptional strength and extended lifespan. The Battery Impact Driver stands out for its reliability and durability. The seamless connection of all accessories through quick-connect features guarantees effortless and rapid assembly—a combination of convenience and practicality. The control board, equipped with over-current protection, enhances safety and reliability.

Buy it

Products

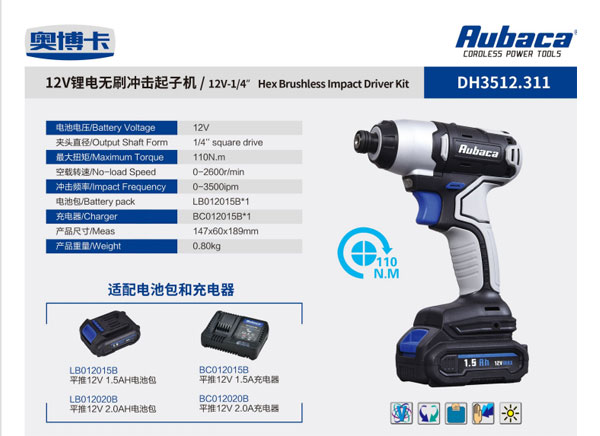

Specifications of DH3512.311 Battery Impact Driver

  • DH3512.311 Battery Impact Driver

    DH3512.311 Battery Impact Driver

    DH3512.311 Battery Impact Driver
    Battery Voltage12V
    Output Shaft Form1/4" square drive
    Maximum Torque110N.m
    No-load Speed0-2600r/min
    Impact Frequency0-3500ipm
    Battery packLB012015B*1
    ChargerBC012015B*1
    Meas147x60x189mm
    Weight0.80kg



    Lug Nut Socket for Impact Driver



Battery Impact Driver: How Does It Work?

  1. Rotational Force:

    When you engage the impact driver, the motor generates rotational force, similar to a traditional drill. This rotational force is transmitted to the chuck, which holds the screw or bit.

  2. Hammer and Anvil Mechanism:

    Unlike a standard drill, an impact driver features a hammer and anvil mechanism inside the tool's housing. The hammer is connected to the motor and rotates along with the chuck, while the anvil is stationary.

  3. Impact Action:

    As the motor turns the hammer, this type of cordless drill impact driver builds up rotational energy. When a high level of torque is needed (e.g., when the screw encounters resistance), the hammer is suddenly released.

  4. Concussive Blows:

    The released hammer strikes the anvil, creating a powerful concussive blow. This impact action occurs in quick succession, providing a series of rapid blows to the screw or fastener.

  5. Increased Torque:

    The combination of rotational force and rapid impacts results in a higher torque output compared to traditional drills. This increased torque allows the impact driver to drive screws more efficiently, even in challenging materials or situations.

  6. Reduced Strain on the User:

    The impact action helps prevent cam out (slipping) of the screw, reducing the strain on the user and minimizing the risk of stripping the screw head.

  7. Quick Bit Changes:

    Impact drivers typically have a 1/4-inch hex chuck, allowing for quick and easy bit changes without the need for additional tools.


Battery Impact Driver: How Does It Work?
